WEED-IT Precision Spraying Technology

WEED-IT is a world-leading, sensor-based spraying system that helps farmers control weeds more sustainably and cost-effectively. Instead of blanket-spraying the whole paddock, WEED-IT only applies chemical where weeds are actually growing – saving you money, product and time.

🌿 How WEED-IT Works

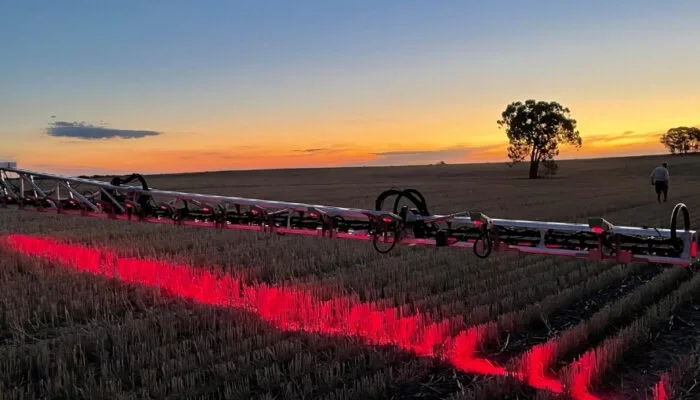

Using advanced optical sensors, WEED-IT detects chlorophyll (the green pigment in weeds) in real time. When a weed is identified:

  1. The system immediately activates the correct nozzle

  2. Herbicide is sprayed directly on the weed – within milliseconds

  3. No chemical is wasted between plants

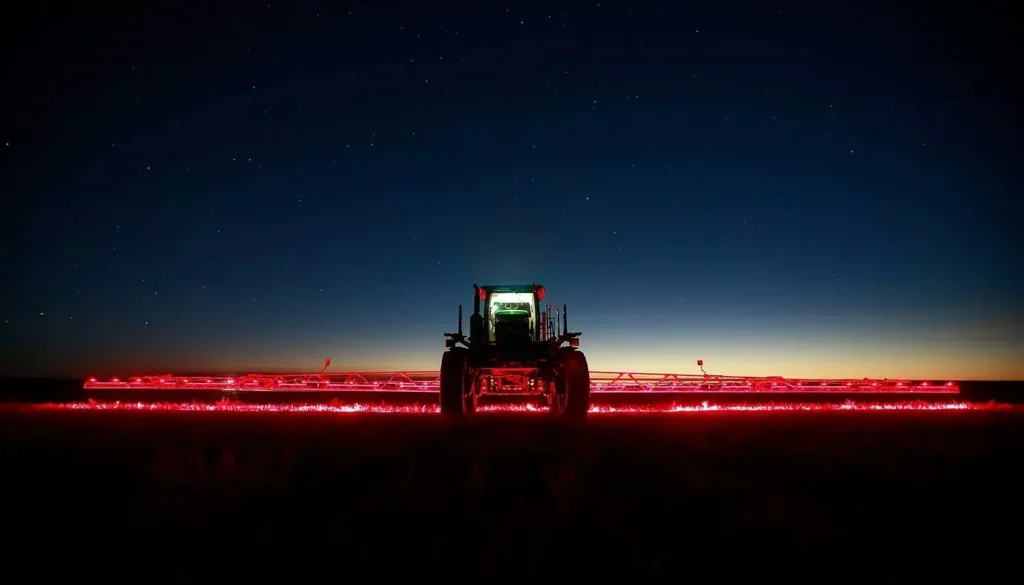

This smart technology performs consistently in full sun or after dark, across a range of speeds, soil types and crop conditions.

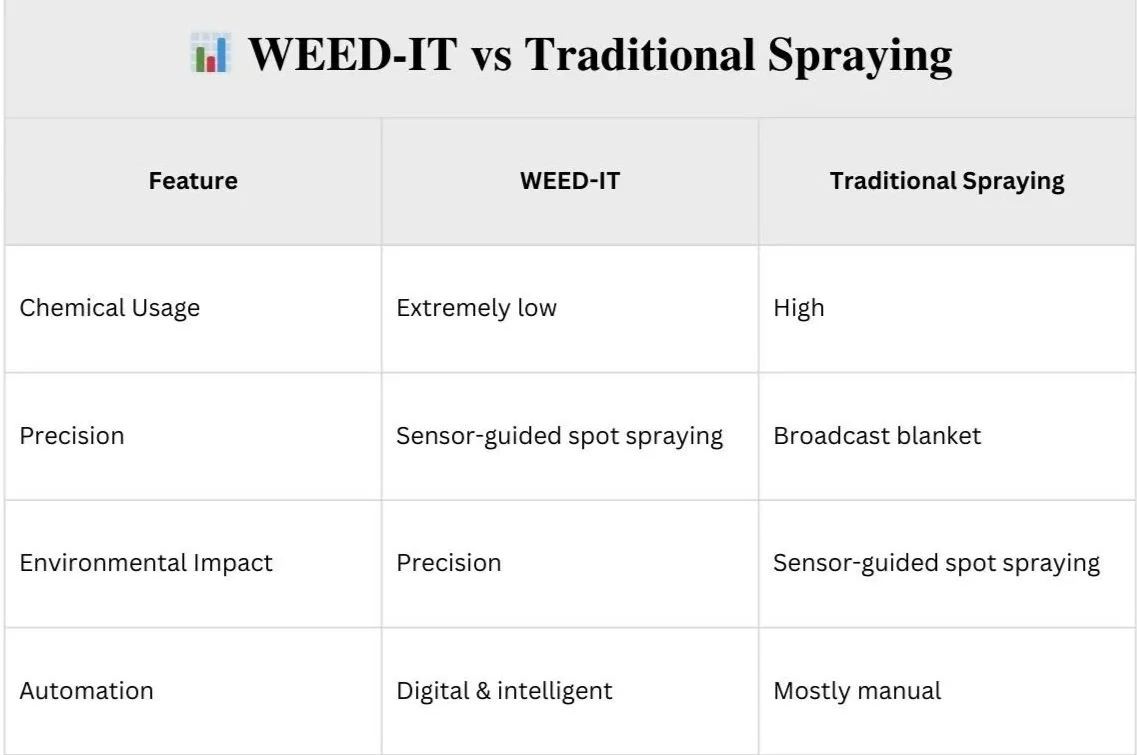

πŸ” Why Farmers Choose WEED-IT

  • Use up to 95% less herbicide – huge input savings

  • Reduce environmental impact – less chemical runoff and drift

  • Fast ROI – less product used = more profit retained

  • Fully digital system – automatic logging, task maps, ISOBUS ready

  • Scales to fit any size operation – retrofit or OEM, from boom sprayers to robotics

  • Healthier paddocks – less residue, better weed resistance management

βœ… Supplied & Supported Locally by Western Mechanical

Western Mechanical can fully supply, install and support WEED-IT systems across a wide range of spray rigs. Whether you’re looking at fitting a new boom or retrofitting your current sprayer, we’ll match the right WEED-IT setup to your operation.

Ready to spray smarter?
Get in touch with the Western Mechanical team today to see how much WEED-IT could save your farm.

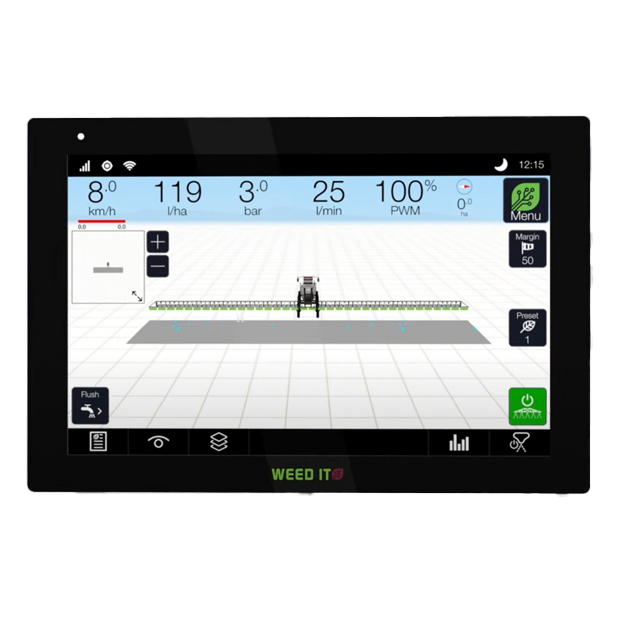

WEED-IT DASH: Smart Control at Your Fingertips

  • WEED-IT DASH is the intelligent command centre for your WEED-IT precision spraying system. Featuring a powerful 10” DASHCOM touchscreen, DASH gives you complete visibility and control over every nozzle, every spray decision and every paddock.

    Built for farmers who want more from their data and spray system, DASH helps reduce waste, increase efficiency and improve weed management – all in real time.

    • High-definition 10" touchscreen – bright, easy-to-use display

    • 25 x 25 cm precision grids – pinpoint accuracy across the boom

    • Individual nozzle control – reduce overlap and unnecessary spraying

    • Multiple mapping layers – view As Detected, As Applied and crop density data

    • Variable rate application – tailored spraying through task maps

    • Real-time 4G connectivity – instant data transfer to the cloud-based DASH portal

    • Over-the-air updates – always run the latest software with a push of a button

    • Predictive maintenance tools – maximise uptime during spraying season

  • Function -

    • Section control per nozzle

    • Prescription/task maps

    • Crop density mapping

    • Spot & double-knock modes

    • Job cards & logging

    Benefit to You -

    • Saves chemical by avoiding overlap

    • Spray exactly where and what you need

    • Know what’s growing – and where

    • Hit weeds hard, save chemical

    • Full traceability across paddocks

  • WEED-IT DASH can be added to your existing WEED-IT QUADRO system or retrofitted to almost any spray rig β€” including trailed, self-propelled, mounted and robotic sprayers.

  • Western Mechanical supplies and supports the full WEED-IT range across Central Queensland and beyond. Our team can recommend and install the right DASH setup for your sprayer and operation.

    Ready to farm β€œbeyond accurate”?
    Contact Western Mechanical today and discover how WEED-IT DASH can transform your paddock management.

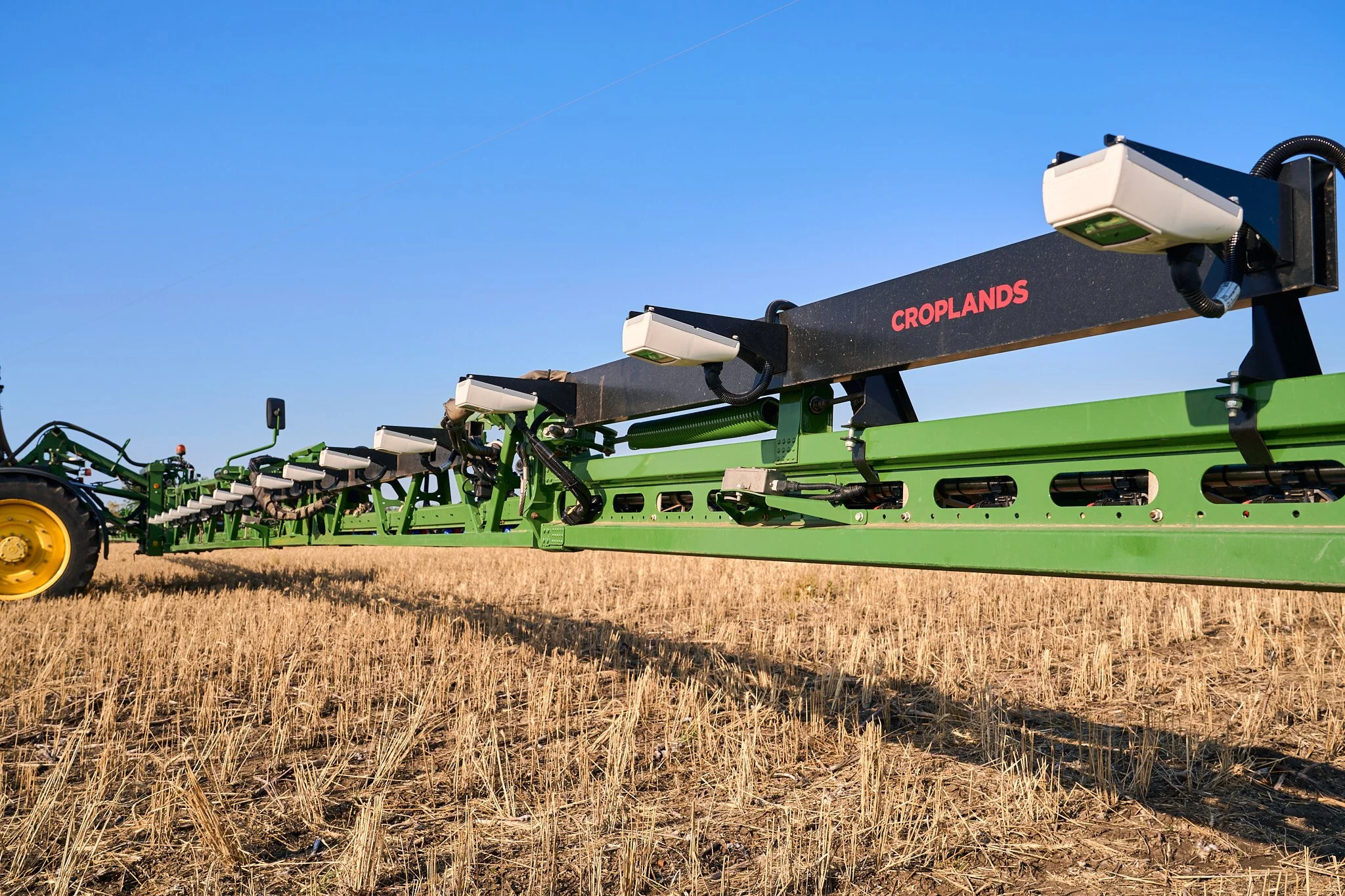

    WEED-IT QUADRO – Precision Weed Detection & Spot Spraying
    Now available through Western Mechanical

WEED-IT QUADRO – Precision Weed Detection & Spot Spraying

  • Is the world-leading weed detection system that uses advanced chlorophyll-fluorescence sensors to find and eliminate individual weeds with unmatched speed and accuracy. Designed to work on a wide range of spray platforms, QUADRO turns your sprayer into a high-performance precision tool – ready for today and the future.

    • Power of Fluorescence: Detects living green weeds using chlorophyll-based sensors – day or night.

    • Ultra-fast PWM technology (100 Hz): Ensures accurate herbicide application, even at speeds up to 25 km/h.

    • Four detection zones per sensor: No weed goes unnoticed thanks to QUADRO’s β€œQuad” technology.

    • Spray only what you target: Save up to 95% on chemical usage, without missing weeds.

    • Upgradeable & future proof: Easily integrates with WEED-IT DASH and AQRATE modules..

  • Speed capability -

    • Up to 25 km/h

    Detection height -

    • 110 cm

    Detection width -

    • 100 cm (4 x 25 cm zones)

    Maximum boom width -

    • 48 metres

    Detectable weed size -

    • From 1 cmΒ²

    Sensor weight -

    • 700 g

    Power consumption (sensor)

    • Max 18.5 W

    • Maximise savings, minimise footprint – dramatically reduce chemical use & drift.

    • Built for any crop – suitable for broadacre, horticulture & orchards.

    • Multi-mode spraying – Spot, Cover, Dual & Spot-in-Crop.

    • Calibrated to your environment – tailored to Australian conditions.

    • Compatible with all sprayers – OEM fit or retrofit to most machines.

WEED-IT AQRATE – Advanced PWM Spraying Technology

  • Brings next-generation Pulse Width Modulation (PWM) control to your sprayer, helping you apply product more accurately, minimise drift and improve efficiency across every hectare. Built around the proven reliability of WEED-IT hardware, AQRATE gives farmers ultimate control without complexity.

  • βœ… Precision PWM control
    Maintain a constant pressure while adjusting nozzle output independently of speed – delivering uniform coverage, optimised droplet size and reduced drift, even through corners.

    βœ… Flexible nozzle spacing
    Choose between 25 cm or 50 cm spacing to suit your sprayer. Upgrade from AQRATE to QUADRO sensors seamlessly (no rewiring required at 25 cm spacing).

    βœ… Modular & scalable
    Mix AQRATE PWM modules with QUADRO sensors on a single boom. Start small and expand as your needs grow.

    βœ… Ready for task maps
    Integrates with WEED-IT DASH to run variable rate spraying based on 25 Γ— 25 cm task maps – with instant loading and real-time execution.

    βœ… Easy to maintain
    Designed for practical farming with low cleaning requirements and full compatibility with modern Closed Transfer Systems (CTS).

    • Consistent L/ha application at any speed

    • Less crop damage and healthier plant growth

    • Reduced over- and under-dosing in curves

    • Works with most PWM-compatible nozzles

    • Future-proof and easily upgradeable

  • AQRATE automatically adjusts flow rate based on ground speed (up to 25 km/h), boom movement and turning angle – maintaining the correct rate regardless of changes in direction or pace. Whether applying herbicides, insecticides or fungicides, AQRATE delivers accurate cover spraying under real-world conditions.

  • Built on the same core technology as the globally trusted WEED-IT QUADRO sensor (50,000+ units sold worldwide), AQRATE delivers rugged, season-after-season performance.

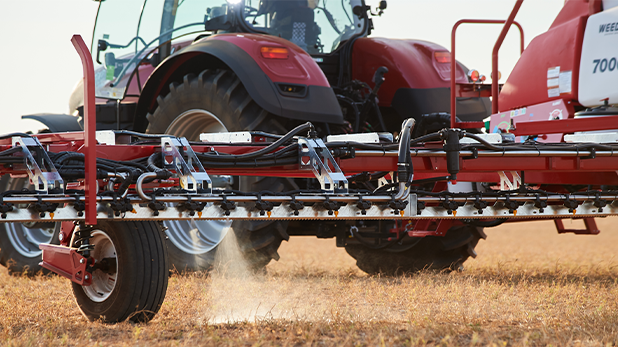

WEED-IT Spot Spraying – Hit Every Weed, Save Every Dollar

  • The original pioneer of spot spraying technology, with every system sold since 1999 capable of detecting and treating individual weeds with pinpoint accuracy. Backed by world-leading fluorescence sensor technology, WEED-IT helps farmers target only what needs spraying – saving up to 95% on chemical use while delivering unmatched weed kill rates.

  • WEED-IT sensors detect chlorophyll (the green pigment found in living plants) using a technology called chlorophyll fluorescence. Once a weed is detected, the system automatically opens a nozzle directly above the plant – applying herbicide within milliseconds.

    This allows you to treat individual weeds instead of entire paddocks, reducing chemical usage, protecting soil, and slowing herbicide resistance.

    • Up to 98% weed hit rates – almost no weeds left behind

    • Per-plant precision – targets only living green weeds

    • Works day or night, even in dusty or variable conditions

    • Standard PWM + individual nozzle control

    • Fully retrofittable to any sprayer type or brand

    • Automatic background calibration for maximum accuracy

    • Speed & curve compensation to maintain correct rates

    • Suitable for herbicides, fertilisers, insecticides, fungicides & biostimulants

    • Fallow paddocks – remove weeds to conserve moisture & prevent resistance

    • Row crops – per-plant treatment with crop-safe products

    • Non-farming areas – spot-spray weeds along fencelines, roadsides, headlands

  • From Spot Spraying to Dual, Cover and Spot-in-Crop modes, WEED-IT is the only precision spraying system that meets all your spraying needs in one setup.

    Western Mechanical can supply, install and support WEED-IT Spot Spraying systems to suit your current sprayer – with expert advice, retrofit kits, and ongoing backup.

    Want to hit weeds harder while spending less?
    Talk to Western Mechanical today about adding WEED-IT Spot Spraying to your spraying program.

WEED-IT Dual Spraying – Broadcast & Spot in One Pass

  • WEED-IT’s Dual Spraying mode uniquely blends cover spraying and spot spraying into a single operation – allowing you to blanket spray your paddock at a low rate, while automatically hitting individual weeds with a higher dose on the go. Powered by ultra-fast PWM technology (up to 100 Hz), it’s the perfect solution for farmers looking to save time, tackle volunteer weeds and maintain accuracy without multiple passes.

    • Broadcast + spot spray simultaneously – saves time and fuel

    • Two rates from one tank & one spray line – simple and efficient

    • Ideal in tight spraying windows – cover the crop and hit every weed

    • Works with herbicides, insecticides and fungicides

    • Operates day or night, with automatic background calibration

    • Individual nozzle control + PWM precision for consistent output

    • Speed & curve compensation for uniform application

    • Retrofittable to almost any sprayer

  • Western Mechanical can install WEED-IT Dual Spraying technology on your existing boom or supply complete systems tailored to your operation. Whether you’re managing fallow, row crops or post-emergent weeds, Dual Spraying gives you maximum efficiency without compromise.

    Spray smarter in every pass β€” talk to Western Mechanical today about WEED-IT Dual Spraying.

🌿 What makes WEED-IT Cover Spraying better?

  • Cover Spraying is WEED-IT’s broadcast mode – giving you full-width spraying capability with precision and control far beyond standard sprayers. Whether applying herbicides, insecticides or fungicides, WEED-IT ensures every part of your paddock receives the correct rate, even while turning, speeding up or slowing down.

    • Individual nozzle control – sections as small as 25–50 cm for reduced waste

    • Pulse Width Modulation (PWM) – keeps application rate and droplet size consistent regardless of speed

    • Automatic speed & curve compensation – no over- or under-application in odd-shaped paddocks

    • Manual or GPS section control – spray only where you need to

    • Retrofittable – upgrade almost any sprayer with WEED-IT’s advanced technology

  • Feature -

    • Full-width herbicide, insecticide & fungicide application

    • PWM-controlled nozzles

    • Sections as small as 25 cm

    • Day and night operation

    • Works in curves & hills

    Benefit -

    • All broadacre spraying needs covered

    • Consistent rate at any speed

    • Minimise overlap and wastage

    • More spraying hours

    • Accurate in real-world conditions

  • WEED-IT’s Spot-in-Crop mode takes weed detection into the crop row, making it possible to selectively target unwanted plants within green crops such as cotton, soybeans and corn. Built on the Power of Fluorescence, this system delivers truly β€œgreen-on-green” precision spraying, helping farmers control weeds post-emergence while saving money and protecting yields.

  • Spot-in-Crop uses intelligent chlorophyll fluorescence sensors to distinguish crop plants from weeds. Once a weed is detected:

    • The nozzle directly above activates (within milliseconds)

    • A precise dose is applied to the weed only

    • Nothing is wasted on the crop or bare ground

    • Ultra-small 10 cm (4") spray margin – reduces off-target spraying

    • Up to 14,000 reads per second – maintains pinpoint accuracy at up to 25 km/h

    • Works day & night – does not require extra light or cameras

    • Self-calibrating & plug-and-play – no retraining or pay-per-use fees

    • Turn compensation built in – consistent performance around bends, curves & hills

    • Compatible with any row crop – ready straight out of the box

    • Ultra-small footprint – easy retrofitting to most sprayers

WEED-IT Spot-in-Crop – Precision Green-on-Green Weed Control

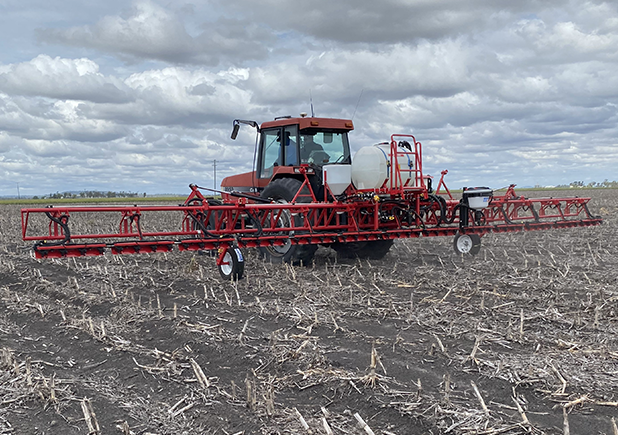

WEED-IT for Broadacre Farming –

  • Broadacre winter and summer crops such as wheat, barley, chickpeas, mungbeans, cotton, sorghum and sugarcane are where WEED-IT earned its reputation. Designed specifically for large-scale farming operations, WEED-IT delivers unmatched per-plant weed control using intelligent fluorescence-based spot spraying technology.

  • Rather than blanket spraying entire paddocks, WEED-IT QUADRO detects individual green weeds and applies herbicide only where needed. By using chlorophyll fluorescence sensors, it expertly identifies living weeds and triggers the correct nozzle within milliseconds β€” day or night, even at speeds up to 25 km/h.

    • Up to 95% savings on chemical & water use

    • Kills individual weeds to preserve soil moisture on fallow

    • Helps prevent herbicide resistance

    • Suitable pre-seeding, in-crop & post-harvest

    • Works under tough conditions – dust, stubble, tricky paddock shapes

    • Retrofits to almost any sprayer (ground glider, trailed, SP or autonomous)

    • Live mapping β€” β€˜as detected’, β€˜as applied’ & density layers

    • No subscriptions or pay-per-use fees

  • Benefit -

    • Spot spraying precision

    • Huge input savings

    • Higher work rates

    • Resistance management

    • Around-the-clock capability

    • PWM precision + curve compensation

    Details -

    • 10 cm minimum spray width per plant

    • Up to 95% less spray & water at low weed pressure

    • Spray more ha per fill with fewer refills

    • Hit hard-to-kill weeds & reduce seed banks

    • Active light source for day/night use

    • Maintains correct rate across corners & speed changes

🌱 How WEED-IT works in row crops

  • Row crops like cotton, maize/corn, soybeans and other high-value plantings present unique weed challenges. WEED-IT Quadro is designed to tackle weeds efficiently pre-emergence, post-emergence, after harvest, and during chemical fallow, giving you full-season precision control.

  • Using Power of Fluorescence, WEED-IT sensors detect every living plant based on chlorophyll content. Even partially covered or hard-to-see weeds are identified, and herbicide is applied only where needed.

    Key features include:

    • Works under hoods and covers to protect row crops

    • Effective in wide-row setups (36–50 inch spacings)

    • Operates in darkness or low light conditions

    • Spot-in-Crop technology targets taller weeds without affecting your crop

    • Eliminate weeds per plant, reducing competition and optimising yield

    • No misses or misidentifications – even partially covered weeds are treated

    • Ultra-small spray margins – minimum nozzle activation of 10 cm (4 inches)

    • Maximise efficiency – save up to 95% on crop protection chemicals and water

    • Protect your investment – prevent herbicide resistance and reduce weed seed banks

    • Works day and night, unaffected by crop movement, dust or wet weeds

    • High-speed accuracy – up to 25 kph (15 mph) with PWM technology and curve compensation

    • Retrofits to any sprayer – ground glider, trailed, self-propelled, or robotic

    • Use mechanical tools in combination with spray if needed

    • Cover more hectares per tank load, fewer refills

    • Single-pass elimination of persistent weeds

    • No calibration required

    • Create detailed maps: β€˜as covered’, β€˜as applied’ and crop density

  • Specialty crops such as orchards, vineyards, berries, nuts, and other permanent tree crops require the best care for optimal yields. WEED-IT Quadro provides precision spraying and weed management to help you maximise crop quality while minimising input costs.

  • At the heart of WEED-IT is the Power of Fluorescence. Every living plant contains chlorophyll, which is naturally detected by WEED-IT sensors. The system identifies weeds, volunteer plants, and individual trees or foliage, allowing you to:

    • Target herbicides and crop protection only where needed

    • Apply liquid fertilisers, biostimulants, insecticides, fungicides, and thinning products with precision

    • Optimise spray deposition and reduce drift

    Each WEED-IT Quadro sensor scans up to 1 metre (40 inches) wide, divided into 4 individually managed zones of 25 cm (10 inches). Sensor placement is fully customisable for berms, middles, or full coverage in orchards and vineyards.

    • Per-plant precision – eliminates weeds individually and treats trees or plants accurately

    • Works day and night – active light source ensures accuracy regardless of sunlight or shade

    • Handles moving foliage and dusty conditions – reliable under all circumstances

    • PWM technology – ensures consistent application rates regardless of sprayer speed

    • Reduces input costs – save up to 95% on crop protection products and optimise fertiliser use

    • Customisable for autonomous systems – integrates with robotic sprayers like Herbicide GUSS and Bluewhite Robotics

    • Biomass-based variable rate spraying – applies fertilisers and crop protection according to foliage density

    • No calibration required – set and go operation

    • Tackles partially covered weeds as effectively as fully visible ones

    • Helps prevent herbicide resistance and reduces weed seed banks

    • Retrofittable to virtually any autonomous or conventional sprayer

    • Create heat maps, coverage maps, and rate maps for precise record-keeping

    • Optimises water, fertiliser, and crop protection efficiency

WEED-IT for Specialty Crops –

Spraying Platforms Compatible with WEED-IT

  • WEED-IT precision spraying technology is designed to be flexible, adaptable, and compatible with a wide range of spraying platforms. Whether you’re upgrading your existing equipment or investing in a new system, WEED-IT can be retrofitted to suit your operation.

  • 🚜 Self-Propelled Sprayers

    • Easily integrates with modern self-propelled sprayers

    • Full coverage with Quadro or AQrate sensors

    • Supports PWM technology for consistent application rates

    πŸ—οΈ Mounted Sprayers

    • Retrofits onto tractors with mounted sprayers

    • Ideal for small to medium-scale farms

    • Maintains per-plant precision and individual nozzle control

    πŸ€– Robotics

    • Fully compatible with autonomous or robotic sprayers

    • Operates day and night with its own active light source

    • Biomass-based variable rate application for high-value crops

    🚢 Ground Gliders and Trailed Sprayers

    • Converts existing trailed or ground glider sprayers into precision spot sprayers

    • Works with all four standard WEED-IT spray modes

    • Perfect for broadacre, row, or specialty crops

    🏍️ Quad Bikes

    • Lightweight, easy-to-mount sensor systems

    • Ideal for small or hard-to-reach areas

    • Precision spraying without missing a single weed

    🍏 Orchard Sprayers

    • Customisable sensor placement for berms, middles, and full canopy coverage

    • Supports targeted fertiliser, biostimulant, and crop protection applications

    • Compatible with Optispot and other orchard sprayers

    • No need for entirely new equipment

    • Maintain existing sprayer functions while gaining precision technology

    • Reduce chemical usage by up to 95%

    • Fully scalable to suit your farm size and crop type

    • Quick installation with full Western Mechanical support
